Model Comparison & Evaluation

Training an algorithm natively is simple; mathematically justifying exactly why one model is superior to another is the explicit role of a Data Scientist.

What You Will Learn

• Define Cross-Validation structurally
• Execute batch evaluation mapping across multiple linear and ensemble models natively
• Generate a Confusion Matrix visualization securely

Prerequisites

• Completed the Random Forests module natively
• Understanding of basic classification mathematics

Step 1: The Danger of the Single Test Set

If you randomly execute train_test_split(test_size=0.2) explicitly, your mathematically evaluated 20% validation chunk may randomly happen to contain all the "easy" geometric rows cleanly. The algorithm natively scores a mathematically perfect 99% accuracy strictly by pure luck.

To mathematically eliminate random chance intelligently, we execute K-Fold Cross-Validation: 1. Topologically split the dataset cleanly into 5 mathematical equal chunks (Folds). 2. Train algorithm natively on Folds 1-4, score securely on Fold 5. 3. Train identically on Folds 2-5, score cleanly on Fold 1. 4. Repeat 5 times explicitly and take the strict mathematical average natively.

Step 2: Batch Model Comparison

We will compare a Logistic Regression securely against a Random Forest natively.

import pandas as pd
import seaborn as sns
from sklearn.linear_model import LogisticRegression
from sklearn.ensemble import RandomForestClassifier
from sklearn.model_selection import cross_val_score

# 1. Execute Data Initialization
df = sns.load_dataset('iris')
X = df.drop(columns='species')
y = df['species']

# 2. Instantiate Algorithm Topology
models = {
    "Logistic Regression": LogisticRegression(max_iter=500),
    "Random Forest": RandomForestClassifier(n_estimators=50, random_state=42)
}

# 3. Mathematically evaluate exactly cleanly via K=5 Fold Cross Validation
for name, model in models.items():
    scores = cross_val_score(model, X, y, cv=5, scoring='accuracy')
    print(f"Algorithm: {name}")
    print(f"Mean Accuracy: {scores.mean():.3f} (StdDev: {scores.std():.3f})\n")

Expected Output

Algorithm: Logistic Regression
Mean Accuracy: 0.973 (StdDev: 0.025)

Algorithm: Random Forest
Mean Accuracy: 0.967 (StdDev: 0.021)

In this simplistic synthetic Iris dataset natively, Logistic Regression structurally marginally outperforms a computationally expensive Random Forest!

Step 3: The Confusion Matrix

Accuracy is often an explicit deception. A model can structurally score 99% accuracy on a Fraud dataset natively explicitly by completely blindly predicting "No Fraud" purely 100% of the time intelligently.

We utilize a Confusion Matrix to geometrically inspect exact algorithmic mistakes.

import matplotlib.pyplot as plt
from sklearn.model_selection import train_test_split
from sklearn.metrics import confusion_matrix

X_train, X_test, y_train, y_test = train_test_split(X, y, random_state=42)

rf2 = RandomForestClassifier().fit(X_train, y_train)
y_pred_rf = rf2.predict(X_test)

cm = confusion_matrix(y_test, y_pred_rf)

plt.figure(figsize=(6, 5))
sns.heatmap(cm, annot=True, cmap='Blues', fmt='g',
            xticklabels=rf2.classes_, yticklabels=rf2.classes_)
plt.title('Random Forest Confusion Matrix')
plt.xlabel('Predicted Label')
plt.ylabel('True Label')
plt.tight_layout()
plt.show()

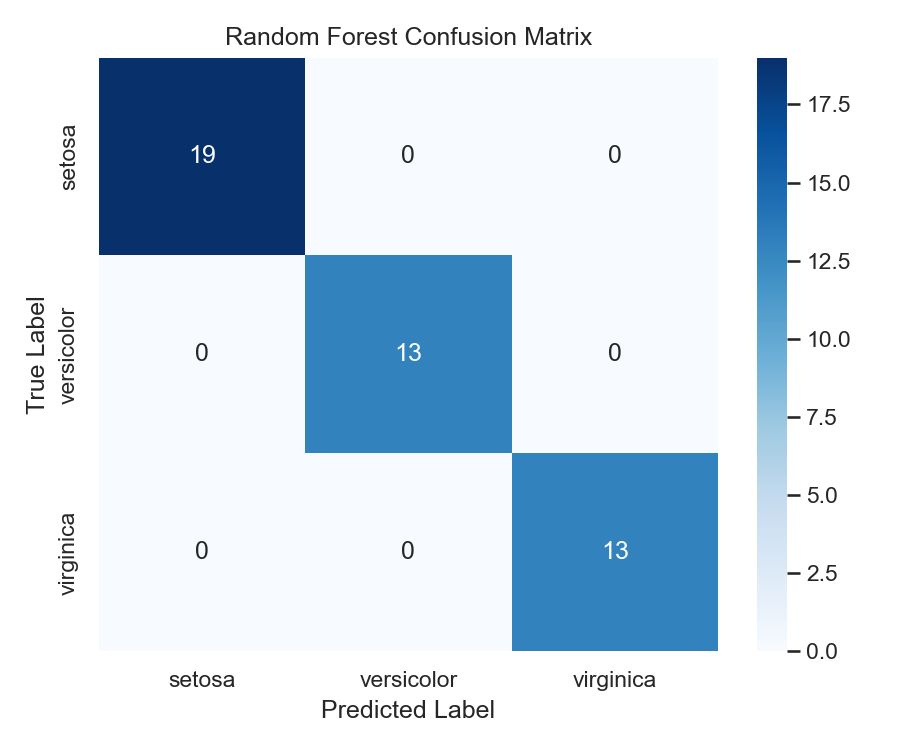

Expected Plot

When reading the Matrix natively, strictly trace physically along the geometric mathematical diagonal structurally (Top-Left to Bottom-Right natively) specifically to perfectly tally the correct structurally perfect algorithmic mapping efficiently securely cleanly.

KSB Mapping

KSB	Description	How This Addresses It
K4.1	Statistical models and methods	Understanding the statistical basis of regression and classification
K4.2	ML and AI techniques	Implementing and comparing supervised learning algorithms
K4.4	Resource constraints and trade-offs	Model complexity vs interpretability; computational cost
S1	Scientific methods and hypothesis testing	Formulating hypotheses and testing with rigorous validation
S4	Building models and validating	Cross-validation, train/test evaluation, performance metrics
B5	Impartial, hypothesis-driven approach	Honest evaluation of model performance and limitations
