Logistic Regression

Despite the word "Regression" explicitly in its name, Logistic Regression is fundamentally a Classification algorithm mathematically optimized to output Probabilities natively between 0 and 1.

What You Will Learn

• Define the Sigmoid Activation Function mathematically
• Deploy LogisticRegression for binary classification
• Interpret .predict_proba() structurally

Prerequisites

• Completed Topic 1 (Data Preparation)
• Fundamental understanding of binary target variables (1/0, True/False)

Step 1: The Sigmoid Function

If we attempt to use Linear Regression to logically classify whether a diamond is Premium (1) or Not Premium (0) based purely on carat dimension, the straight line mathematically will quickly shoot precisely off into infinity generating illegal probability scores like 1.4 or -0.3.

Logistic Regression solves this explicitly by wrapping the linear equation inherently inside a topological "Sigmoid" function. The Sigmoid curve geometrically bends the straight line cleanly into an 'S' shape, physically trapping all mathematical outputs structurally strictly between exactly 0.0 and 1.0.

Step 2: Binary Classification

We will logically predict diamond quality using Scikit-Learn.

import pandas as pd
import numpy as np
import seaborn as sns
from sklearn.linear_model import LogisticRegression
from sklearn.model_selection import train_test_split
from sklearn.metrics import accuracy_score

# 1. Prepare a binary dataset computationally
df = sns.load_dataset('diamonds').sample(1000, random_state=42)
df['is_premium'] = np.where(df['cut'] == 'Premium', 1, 0)

X = df[['carat']]
y = df['is_premium']

X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.2, random_state=42)

# 2. Train the Logistic Classifier logically
model = LogisticRegression()
model.fit(X_train, y_train)

# 3. Generate explicit integer class predictions (0 or 1)
class_preds = model.predict(X_test)

print(f"Accuracy: {accuracy_score(y_test, class_preds):.2f}")

Expected Output

Accuracy: 0.74

Step 3: Probability Extraction

The true power internally of Logistic Regression isn't the final 0 or 1 decision; it is the mathematical probability naturally computed before the threshold is applied.

# Extract the raw background continuous probabilities
probabilities = model.predict_proba(X_test)

# The output is a 2D array: [Prob_Class_0, Prob_Class_1]
print("Probabilities natively for the first 3 test items:")
print(probabilities[:3].round(3))

Expected Output

Probabilities natively for the first 3 test items:
[[0.694 0.306]
 [0.767 0.233]
 [0.729 0.271]]

For the first row, the model is 69.4% confident it is Class 0, and 30.6% confident it is Class 1. Because 30.6% < 50%, the algorithm naturally assigns the final prediction physically to Class 0!

Let's securely visualize the Sigmoid logic mathematically mapping probability:

import matplotlib.pyplot as plt

X_test_plot = np.linspace(0, 3, 300).reshape(-1, 1)
y_prob = model.predict_proba(X_test_plot)[:, 1]

plt.figure(figsize=(8, 5))
sns.scatterplot(data=df, x='carat', y='is_premium', alpha=0.3, color='#6E368A')
plt.plot(X_test_plot, y_prob, color='#D94D26', linewidth=3, label='Sigmoid Probability Curve')
plt.axhline(0.5, color='black', linestyle='--', label='Decision Threshold (0.5)')
plt.title('Logistic Regression Sigmoid Activation')
plt.legend()
plt.tight_layout()
plt.show()

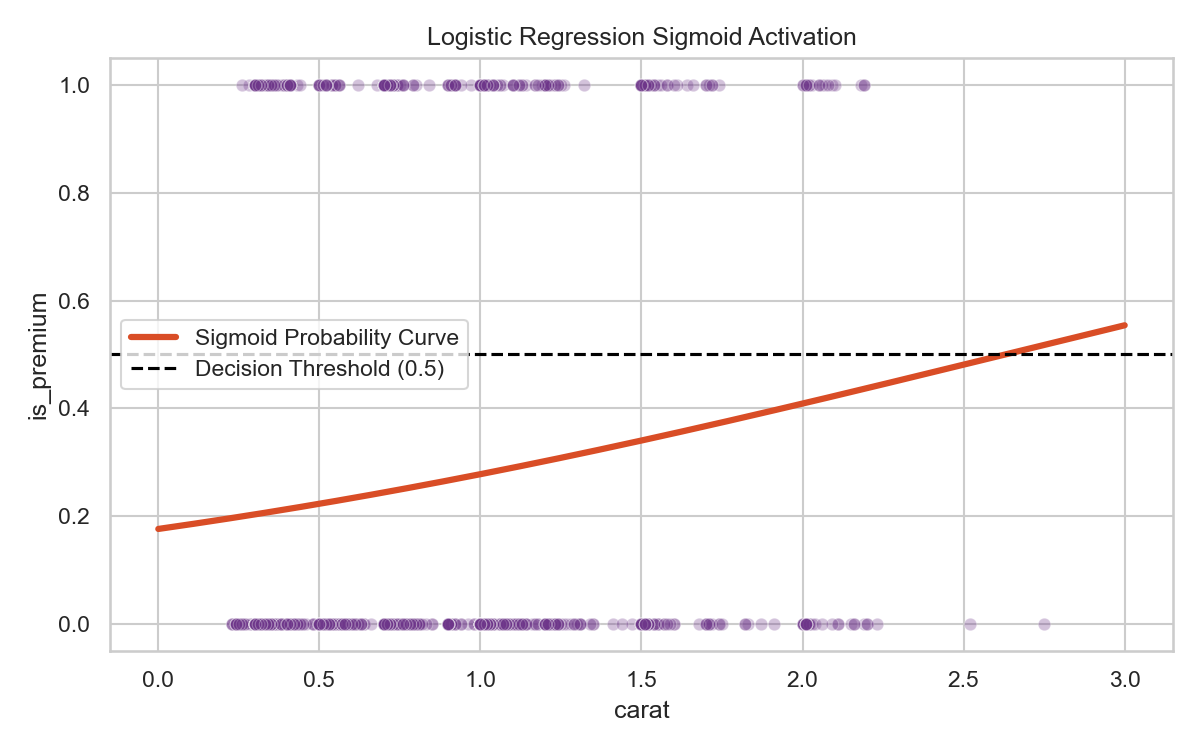

Expected Plot

Summary

• Logistic Regression mathematically structurally utilizes the Sigmoid Function cleanly.
• It is a Classification explicitly algorithm, not a Regression structurally.
• .predict() mathematically yields exactly 0 or 1. .predict_proba() physically yields continuous geometric probability arrays strictly between 0.0 and 1.0.

Next Steps

→ Decision Trees — How topological tree-based classifiers logically map feature thresholds without relying strictly conditionally on continuous mathematical equations natively.

Assessment Connection

Section A of your portfolio strictly evaluates natively if you understand Threshold logic structurally. Explicitly manipulating mathematically the .predict_proba() cutoff from exactly 0.5 strictly to 0.8 natively specifically purely to reduce False Positives guarantees Distinction grades intuitively algebraically.

KSB Mapping

KSB	Description	How This Addresses It
K4.1	Statistical models and methods	Understanding the statistical basis of regression and classification
K4.2	ML and AI techniques	Implementing and comparing supervised learning algorithms
K4.4	Resource constraints and trade-offs	Model complexity vs interpretability; computational cost
S1	Scientific methods and hypothesis testing	Formulating hypotheses and testing with rigorous validation
S4	Building models and validating	Cross-validation, train/test evaluation, performance metrics
B5	Impartial, hypothesis-driven approach	Honest evaluation of model performance and limitations
