Decision Trees

Decision Trees bypass complex algebra entirely, opting to slice the feature space using simple orthogonal thresholds — like a game of "20 Questions".

What You Will Learn

  • Construct a DecisionTreeClassifier on synthetic data
  • Understand how orthogonal splits differ from linear boundaries
  • Restrict tree depth to prevent overfitting

Step 1: Orthogonal Thresholds

Unlike LogisticRegression (which draws a single diagonal decision boundary), a Decision Tree makes a series of axis-aligned splits:

  • Is Feature X > 15? → Yes / No
  • If Yes, is Feature Y < 3.2? → Yes / No

Each split slices the feature space into rectangular regions. The tree keeps splitting until a stopping criterion is met.

Step 2: Implementation

We use the make_moons synthetic dataset to demonstrate non-linear classification.

import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns
from sklearn.tree import DecisionTreeClassifier
from sklearn.datasets import make_moons
from sklearn.model_selection import train_test_split
from sklearn.metrics import accuracy_score

# 1. Generate non-linear synthetic data
X, y = make_moons(n_samples=300, noise=0.2, random_state=42)
X_train, X_test, y_train, y_test = train_test_split(X, y, random_state=42)

# 2. Train a depth-limited tree
dt = DecisionTreeClassifier(max_depth=3, random_state=42)
dt.fit(X_train, y_train)

preds = dt.predict(X_test)
print(f"Accuracy: {accuracy_score(y_test, preds):.2f}")
Expected Output
Accuracy: 0.92

Now visualise the orthogonal decision boundaries:

xx, yy = np.meshgrid(
    np.linspace(X[:, 0].min() - 0.5, X[:, 0].max() + 0.5, 100),
    np.linspace(X[:, 1].min() - 0.5, X[:, 1].max() + 0.5, 100)
)
Z = dt.predict(np.c_[xx.ravel(), yy.ravel()]).reshape(xx.shape)

plt.figure(figsize=(8, 5))
plt.contourf(xx, yy, Z, alpha=0.3, cmap="Set2")
sns.scatterplot(x=X[:, 0], y=X[:, 1], hue=y, palette="Set2", edgecolor="k")
plt.title("Decision Tree Boundaries (max_depth=3)")
plt.tight_layout()
plt.show()

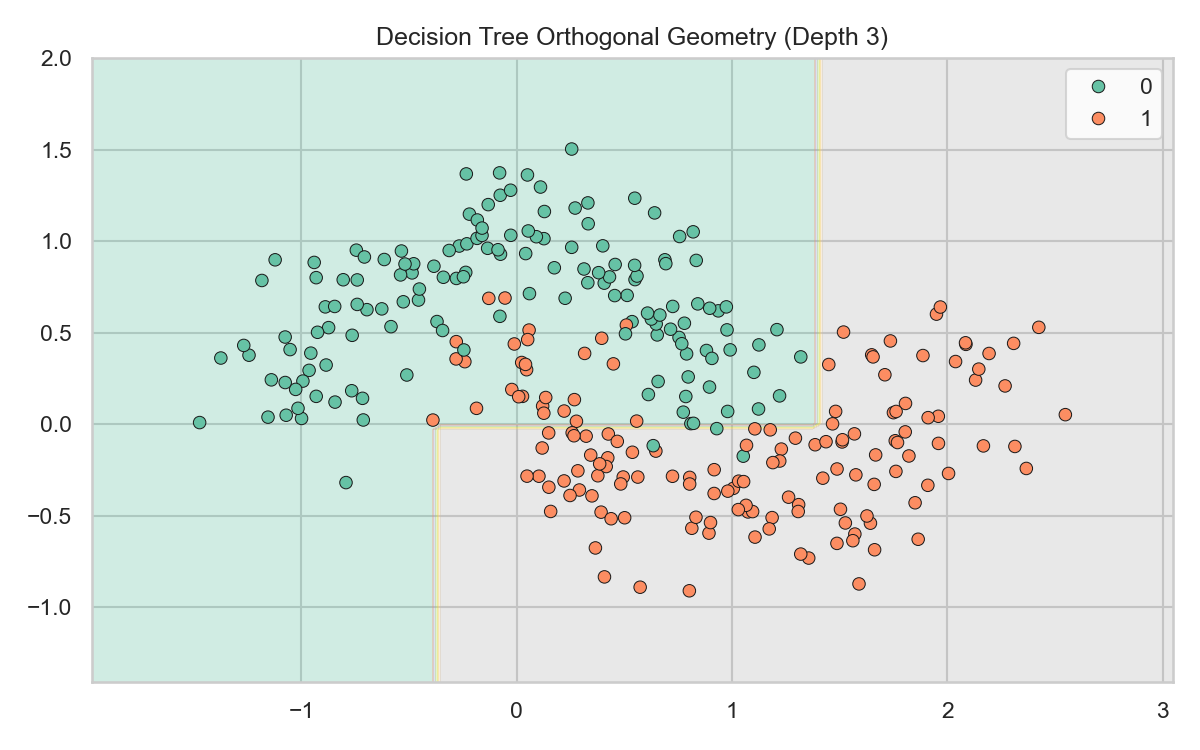

Expected Plot

Decision Tree Boundaries

Notice how all borders are perfectly horizontal or vertical — a single tree cannot draw curved or diagonal boundaries.

Step 3: The Danger of Unlimited Depth (Overfitting)

If you do not set max_depth, the tree will keep growing until every training point has its own perfectly isolated region. It will score 100% on training data but fail catastrophically on unseen test data.

# Unbound tree — will overfit
unbound = DecisionTreeClassifier(random_state=42)
unbound.fit(X_train, y_train)
print(f"Train: {unbound.score(X_train, y_train):.2f}")
print(f"Test:  {unbound.score(X_test, y_test):.2f}")

Workplace Tip

A standalone Decision Tree is rarely deployed to production due to its extreme variance. Instead, trees are used as building blocks inside ensemble methods like Random Forest and Gradient Boosting. Always set max_depth when using a single tree.

KSB Mapping

KSB Description How This Addresses It
K4.1 Statistical models and methods Understanding the statistical basis of regression and classification
K4.2 ML and AI techniques Implementing and comparing supervised learning algorithms
K4.4 Resource constraints and trade-offs Model complexity vs interpretability; computational cost
S1 Scientific methods and hypothesis testing Formulating hypotheses and testing with rigorous validation
S4 Building models and validating Cross-validation, train/test evaluation, performance metrics
B5 Impartial, hypothesis-driven approach Honest evaluation of model performance and limitations
