Detecting & Treating Outliers

One bad data point can completely derail a linear calculation. Learn to find and neutralise model-breaking anomalies.

What You Will Learn

  • Visually identify extreme outliers using Seaborn Box Plots
  • Programmatically calculate Interquartile Range (IQR) boundaries
  • Cap extreme values systematically rather than deleting data

Prerequisites

  • Completed the Scaling & Normalisation tutorial
  • Basic understanding of percentiles (25th, 75th)

Step 1: Visual Detection

We will use the diamonds dataset again. To demonstrate outliers properly, we will artificially inject some severe anomalies. Box plots are the definitive visual tool for hunting outliers.

import pandas as pd
import numpy as np
import seaborn as sns
import matplotlib.pyplot as plt

df = sns.load_dataset('diamonds').head(1000)

# Inject structural anomalies for demonstration
df.loc[df.index[0], 'price'] = 25000
df.loc[df.index[1], 'carat'] = 6.0

# Plotting box plots to instantly spot outliers
fig, axes = plt.subplots(1, 2, figsize=(12, 5))
sns.boxplot(data=df, y='price', x='cut', ax=axes[0], palette='viridis')
axes[0].set_title('Box Plot for Outlier Detection (Price)')

sns.scatterplot(data=df, x='carat', y='price', alpha=0.5, ax=axes[1])
axes[1].set_title('Scatter Plot IQR Bound')

Any point sitting individually outside the thick "whiskers" of the box plot is a statistical outlier.

Step 2: The IQR Method

You cannot rely on humans to visually spot every outlier. The Interquartile Range (IQR) mathematically defines the boundary of "normal". Anything above Q3 + 1.5*IQR is flagged.

# Calculate the 25th (Q1) and 75th (Q3) percentiles
Q1 = df['carat'].quantile(0.25)
Q3 = df['carat'].quantile(0.75)
IQR = Q3 - Q1

# Define our statistical boundaries
lower_bound = Q1 - 1.5 * IQR
upper_bound = Q3 + 1.5 * IQR

# How many rows violate this boundary?
outliers = df[(df['carat'] < lower_bound) | (df['carat'] > upper_bound)]
print(f"Total rows: {len(df)} | Outliers detected: {len(outliers)}")
Expected Output
Total rows: 1000 | Outliers detected: 21

Let's dynamically draw that bound onto our scatter plot from Step 1 to see strictly where the threshold falls:

axes[1].axvline(upper_bound, color='red', linestyle='--', label=f'Upper IQR ({upper_bound:.2f})')
axes[1].legend()

plt.tight_layout()
plt.show()

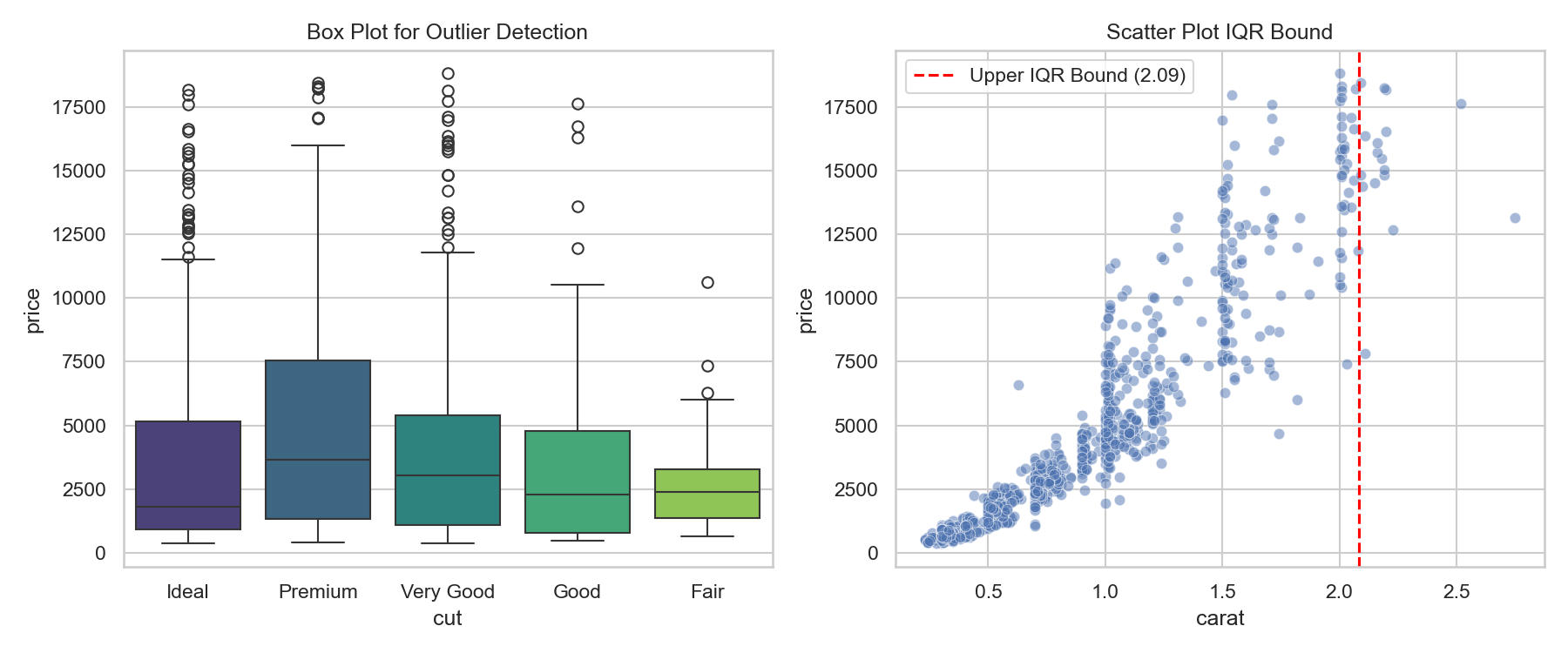

Expected Plot

Outlier detection

Workplace Tip

Never delete outliers automatically. In fraud detection, those outliers ARE the entire target! The 6.0 carat diamond in our example may genuinely exist and be priced accurately. Always consult a domain expert to determine if an anomaly is a "data entry error" or a "genuine extreme event."

Step 3: Capping (Winsorisation)

If you determine the outliers are destructive but you cannot throw away 21 rows of data, you can "cap" them at a specific ceiling threshold. This is mathematically known as Winsorisation.

# Cap values strictly at the calculated upper/lower bounds
df['carat_capped'] = np.clip(df['carat'], a_min=lower_bound, a_max=upper_bound)

print(f"Max original carat: {df['carat'].max()}")
print(f"Max capped carat: {df['carat_capped'].max():.2f}")
Expected Output
Max original carat: 6.0
Max capped carat: 1.04

Assessment Connection

In your final EPA portfolio mapping to KSB S4 (Data Cleansing), explicitly documenting exactly why you chose to 'Cap' rather than 'Drop' outliers provides examiners the precise analytical logic required to award top grades.

Summary

  • Outliers drag mathematical averages and linear models radically off course.
  • Use sns.boxplot() prior to modelling to visually identify magnitude anomalies.
  • Calculate the IQR (Q3 - Q1) bound dynamically to hunt anomalies across millions of rows without manual visualisation.
  • Use np.clip() to pull destructive outliers back to the mathematical fence without deleting the row entirely.

Next Steps

→ Building Preprocessing Pipelines — package all cleaning, scaling, and encoding into a single robust transformer block.

Stretch & Challenge

For Advanced Learners

Isolation Forest Algorithm

The IQR method only works on one column at a time (Univariate). What if a diamond's carat = 1 (normal) and price = $1,000 (normal), but together 1 carat for $1,000 is an impossible combination? You need a Multivariate outlier algorithm.

IsolationForest builds randomised decision trees to deliberately isolate unique data points mathematically across multi-dimensional features.

from sklearn.ensemble import IsolationForest

# Train the anomaly detector across BOTH columns
clf = IsolationForest(contamination=0.02, random_state=42)
predictions = clf.fit_predict(df[['carat', 'price']])

# Predictions return -1 for an outlier and 1 for normal
df['multivariate_outlier'] = predictions
print(df[df['multivariate_outlier'] == -1].head())

Examine the rows marked -1 and attempt to understand why IsolationForest triggered them without explicitly violating single-column bounds.

KSB Mapping

KSB Description How This Addresses It
K5.3 Common patterns in real-world data Identifying missing values, duplicates, outliers, and class imbalance
S2 Data engineering and governance Systematic data cleaning, transformation, and quality assessment
S3 Programming for data manipulation pandas pipelines for data preparation
B3 Adaptability and pragmatism Handling imperfect real-world datasets
